Outdoor Stair Lifts are not intended for use in snow and ice.
- Drive Type: Cable
- Battery Powered: No
- Self Installable: Yes
- Basic Installation Included: No
- Standard Capacity: 350 lb
- Max Track Length, Standard: 16'
- Max Track Length, Optional: 26'
- Track Material: Extruded Aluminum
- Swivel Seat: Yes
- Flip-Up Seat: Yes
- Flip-Up Armrests: No
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: Yes
- Seat Width: 19"
- Seat Depth: 14"
- Unit Footprint, In Use: 24.25"
- Unit Footprint, Folded: 14"
- Track Footprint: 10"
- Seat Width, Max: 21"
- Rail Angle, Min: 30°
- Rail Angle, Max: 45°
- Digital Diagnostics Display: No
- Key Lock: No
- Seat Size
- Standard, 19" W$0.00
- Extra Wide, 21" W$350.00
- Flip-Up Armrest Seat, 19" W$350.00
- Vinyl Seat Color
Light Almond$0.00
- Options

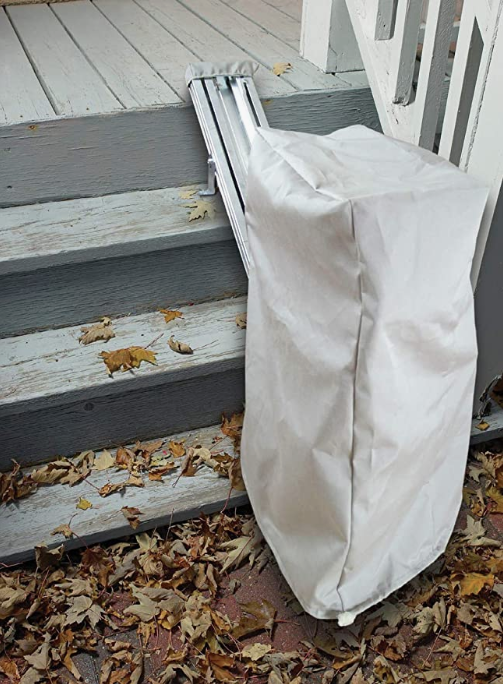

- Outdoor Package - Includes covers for the seat & chassis, track header, and between the seat & chassis$0.00
- Keylock Package - Keyed Base & Keyed Call-Send Controls$450.00
- Keyed Base Only$244.00
Grocery Basket$442.00
Heavy Cargo Rack (mounts in place of the seat)$650.00- Additional Standard Brackets (priced each, typically need a pair for installations)$22.00
- Additional Tall Brackets (priced each, typically need a pair for installations)$22.00
- Track Length (15' is Standard *)
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.$0.00
- Custom Cut track Less Than 15'$154.00
- 15' of track (180")$0.00
- Track length 16' and over reduces weight capacity to 250 pounds$0.00
- Up to 20' of track - 250 lb. capacity$467.00
- 20' to 25' of track - 250 lb. capacity$683.00
- Orientation (looking UP the staircase)
- The stair lift will be on the left$0.00
- The stair lift will be on the right$0.00
- Installation
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout$0.00
- Self Installation$0.00
- Nationwide Installation$599.00
- Nationwide Installation and Measurement Service$749.00
- Existing Stair Lift Removal$499.00
- Additional Charge for Installation in the States of: New York, Massachusetts, and Illinois$150.00
- Installation Permit
- Permit (Required in Kentucky for EACH item being installed)$87.50
- Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Installation In Remote or Limited Access Location$285.00
- Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
- 1. Overall length$0.00
- 2. Top stair to bottom stair$0.00
- 3. Staircase width$0.00
- 4. Bottom clearance$0.00
- 5. Rise of one step$0.00
- 6. Tread of one step$0.00
- 7. Diagonal$0.00
- 8. Door at the top$0.00
- Need help measuring? Print out the "How to Measure" worksheet.$0.00
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
