1 (800) 690-5388
2 years on parts
5 years on drive train, motor and circuit board
- ETL listed A17.5 / B44 - A18.1

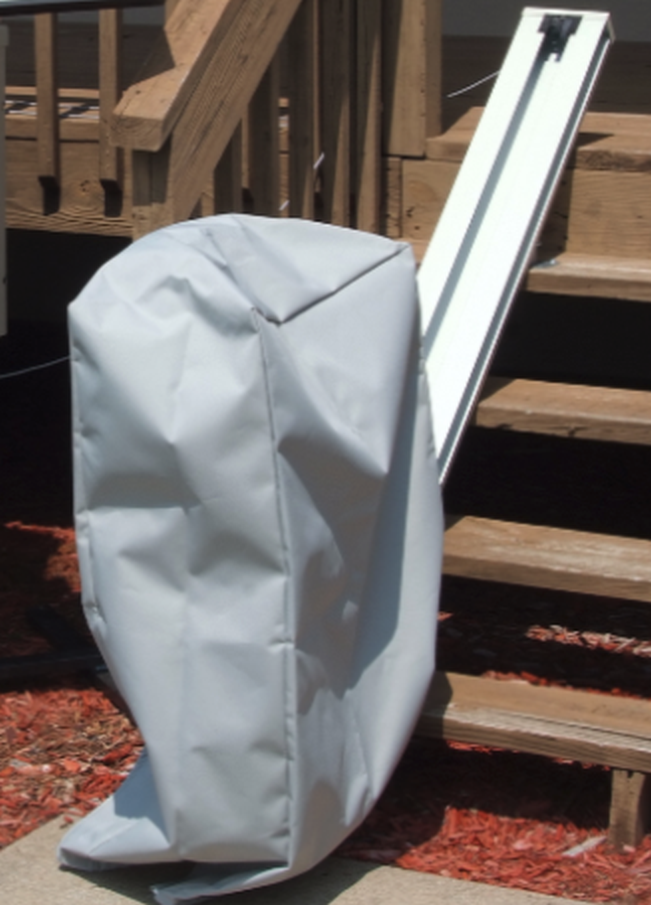

- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

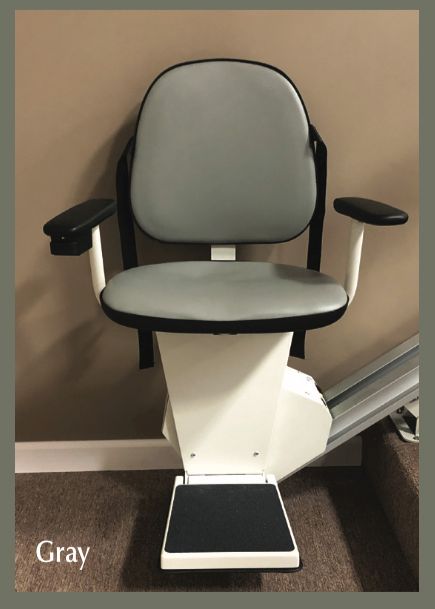

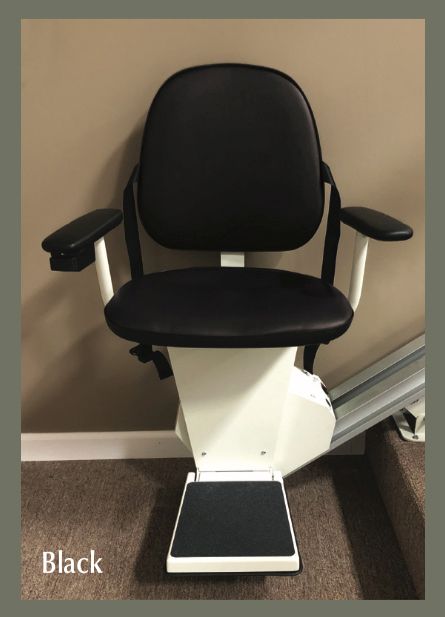

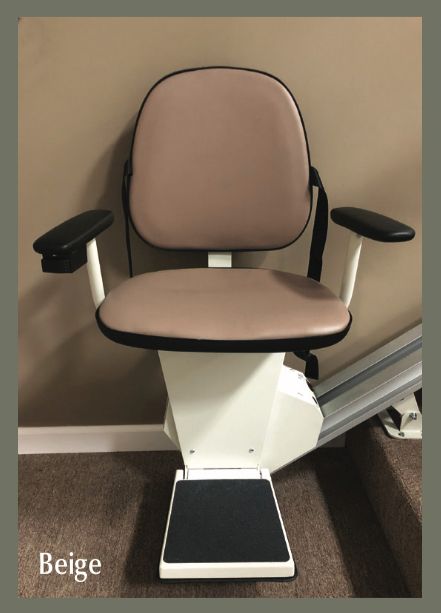

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
- Drive Type: Rack and Pinion
- Battery Powered: Yes
- Self Installable: No
- Basic Installation Included: No
- Standard Capacity: 350 lb
- Max Track Length, Standard: 15'
- Track Material: Anodized Aluminum
- Swivel Seat: Yes
- Swivel Seat Rotation: 90 Degrees at top landing
- Flip-Up Seat: Yes
- Flip-Up Armrests: Yes
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: No
- Warranty: 1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board
- Track Width: 6.5"
- Call Stations Included: 2
- Rail Angle, Min: 25°
- Rail Angle, Max: 45°
- Digital Diagnostics Display: No
- Key Lock: No
- Stair Lift Orientation
- Right$0.00
- Left$0.00

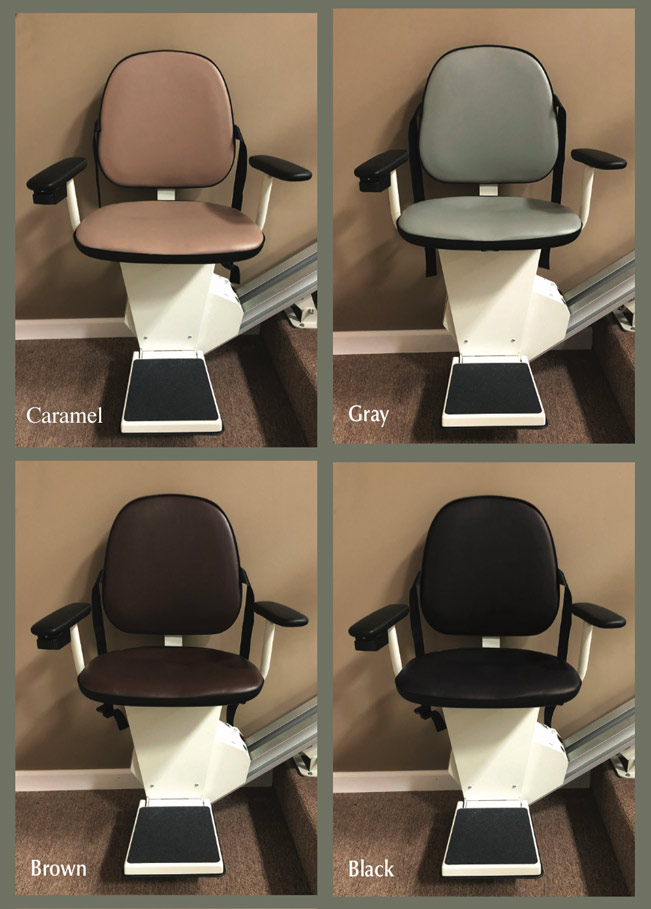

- Upholstery Color
Black$0.00
Walnut$0.00
Caramel$0.00
Gray$0.00
- Seat Width
- Standard$0.00
- Arms Extended 2" on Either Side$230.00
- Chassis / Track Custom Color
- Chassis Custom Color$310.00
- RAL Color for Chassis Powder Coat$0.00
- Track Custom Color$462.00
- RAL Color for Track Powder Coat$0.00
- Track Length
- Standard 15' Of Track$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)$75.00
- Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length$0.00
- Step 2 - Top Landing to Bottom Step$0.00
- Step 3 - Stair Width$0.00
- Step 4 - Available Space at Bottom$0.00
- Step 5 - Height of One Step$0.00
- Step 6 - Length of One Tread$0.00
- Step 7 - One Step Front Edge to Front Edge$0.00
- Step 8 - Available Space at Top$0.00
- Options

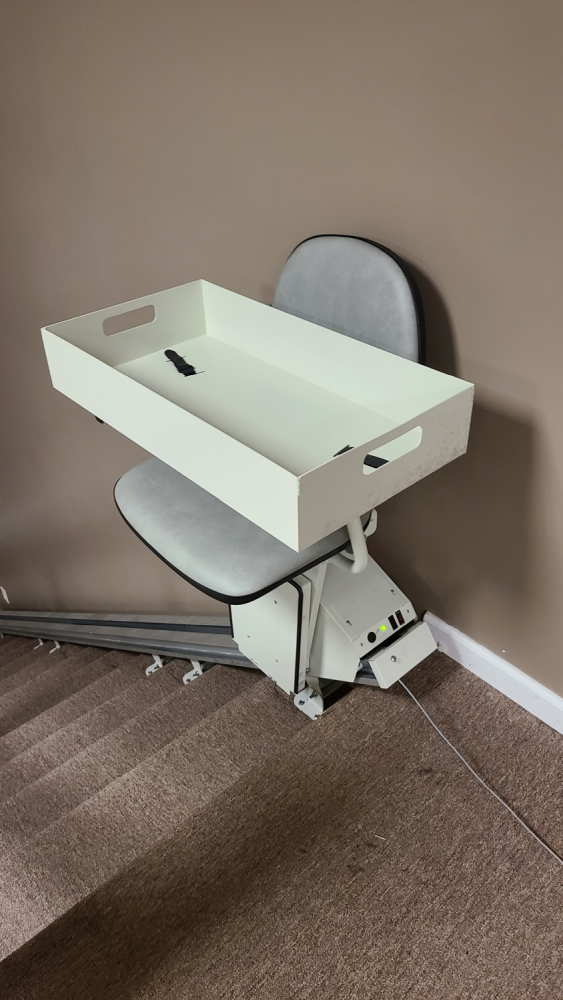

Cargo Tray Add-On$230.00- Wall Mounted Call/Send Controls (set)$154.00
- Additional Key Fob Remote$77.00
- Additional Standard Brackets$38.00
- Tall Brackets$39.00
- Extra Splice Bar$23.00
- Key Switch$77.00
- Lockable Battery Disconnect$77.00
- Bluetooth Controller$124.00

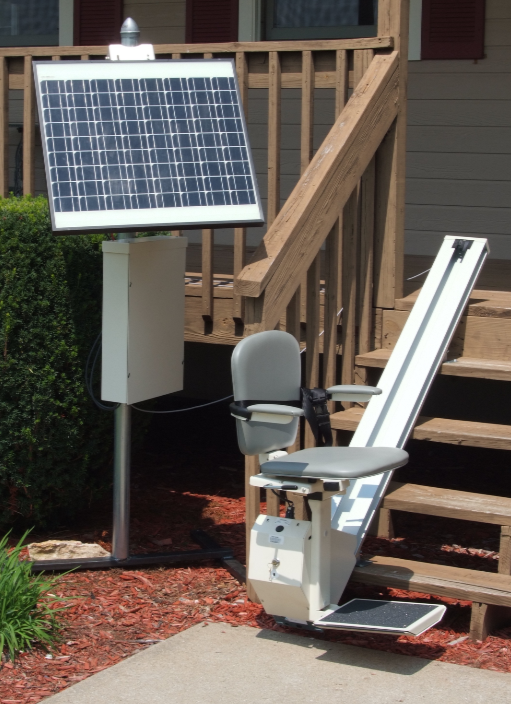

Solar Power Unit$1,495.00
- Installation
- Self-Install$0.00
- Nationwide Installation Service$599.00
- Double Stair Lift Installation Service - Per Stair Lift$437.50
- Nationwide Measurement and Installation$749.00
- Stair Lift Removal and Disposal$499.00
- Installation Special Cases
- Installation In Remote or Limited Access Location$285.00
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Shipping
- Additional Shipping Charge for Unit with More Than 16' of Track$154.00
- Shipping to Alaska or Hawaii (Call for Price)$0.00
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
