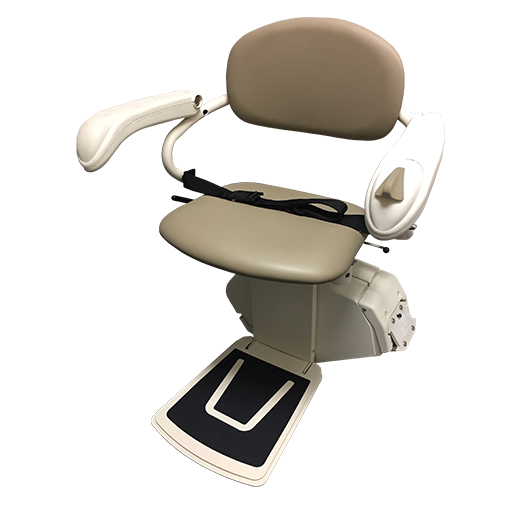

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.
The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.
- Drive Type: Polymer Worm / Worm-Rack
- Battery Powered: Yes
- Self Installable: Yes
- Basic Installation Included: No
- Standard Capacity: 300 lb
- Max Track Length, Standard: 15.5'
- Max Track Length, Optional: 70'
- Swivel Seat: Yes
- Flip-Up Seat: Yes
- Flip-Up Armrests: Yes
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: Yes
- Seat Width: 19"
- Seat Depth: 16"
- Unit Footprint, Folded: 11"
- Rail Angle, Min: 32°
- Rail Angle, Max: 45°
- Digital Diagnostics Display: No
- Key Lock: Yes
- Track Lengths Selection: 15' (180") is Standard *
* Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.$0.00- 15' (180") of Track$0.00
- Length in inches if Shorter than 180" (allow +7" for entry/exit)$0.00
- Additional Track (Maximum 70' Including the 15' Standard Track)
- Up to 3' of Additional Track$250.00
- Up to 5' of Additional Track$393.00
- Up to 7'9" (93") of Additional Track$536.00
- Additional Brackets (comes with standard)
- Standard Brackets$29.00
- Tall Brackets$29.00
- Options
- Track Cut to Custom Length (Required for any track cut)$143.00
- Chassis Obstruction Sensors$108.00
- Key Lock on Chasis$143.00
- Seatbelt Extension$100.00
- Manual Lowering Tool$50.00
- Folding Rail - Left Hand$1,795.00
- Folding Rail - Right Hand$1,795.00
- Power Options
- No Power Options$0.00
- Power Swivel (temporarily out of stock)$860.00
- Power Footrest$795.00
- Power Swivel and Power Footrest (temporarily out of stock)$1,490.00
- Call Stations
- Top & Bottom Call-Send Stations$0.00
- Orientation (looking UP the staircase)
- The stair lift will be on the left$0.00
- The stair lift will be on the right$0.00
- Installation
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout$0.00
- Self Installation$0.00
- Nationwide Installation$599.00
- Nationwide Installation and Measurement Service$749.00
- Double Stair Lift Installation Service - Per Stair Lift$437.50
- Stair Lift Removal and Disposal$499.00
- Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Installation In Remote or Limited Access Location$285.00
- Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
- 1. Overall length$0.00
- 2. Top stair to bottom stair$0.00
- 3. Staircase width$0.00
- 4. Bottom clearance$0.00
- 5. Rise of one step$0.00
- 6. Tread of one step$0.00
- 7. Diagonal$0.00
- 8. Door at the top$0.00
- Need help measuring? Please see our "How to Measure" page.$0.00
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
