(Note: weight capacity is reduced to 250 pounds if the track length is 16 feet or longer.)
Outdoor Stair Lifts are not intended for use in snow and ice
Features:

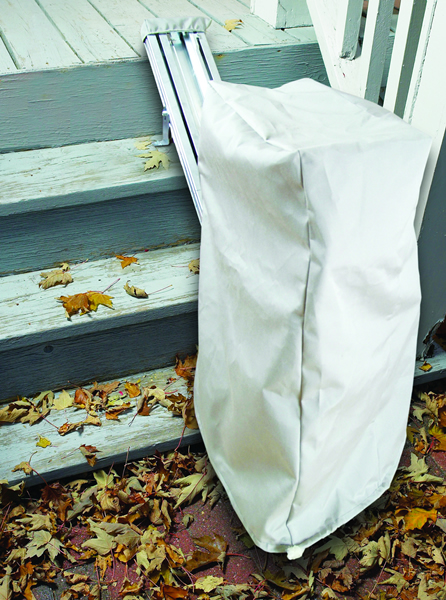

- Header cover, internal chassis cover and a large weatherproof cover included
- Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
- Mounts to the stairs (not the wall) on either side of staircase
- Operates on standard 115V AC household current
- Extruded aluminum track is available in custom lengths
- Seat and footrest fold to save space
- Seat cushions in exterior marine grade vinyl
- Separate controls at top and bottom of stairs
- Drive Type: Cable
- Battery Powered: No
- Self Installable: Yes
- Basic Installation Included: No
- Standard Capacity: 350 lb
- Max Track Length, Standard: 15.5'
- Max Track Length, Optional: 25'
- Track Material: Aluminum
- Swivel Seat: Yes
- Flip-Up Seat: Yes
- Flip-Up Armrests: No
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: Yes
- Seat Width: 17.5"
- Seat Depth: 14"
- Unit Footprint, In Use: 24.5"
- Unit Footprint, Folded: 14"
- Track Footprint: 12"
- Track Width: 8"
- Call Stations Included: Wired
- Rail Angle, Min: 30°
- Rail Angle, Max: 45°
- Digital Diagnostics Display: No
- Key Lock: No
- Vinyl Seat Color
Light Almond$0.00
- Seat Size
- 17.5" W$0.00
- Options
- Keylock Package - Keyed Base & Keyed Call-Send Controls$443.00
- Keyed Base Only$236.00
- Grocery Basket$293.00
- Wireless Call/Send Controls For Outdoors$565.00
- Track Length (15' is Standard *)
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.$0.00
- 15' of track * (180")$0.00
- Custom Cut track Less Than 15'$150.00
- Track length 16' and over reduces weight capacity to 250 pounds$0.00
- Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity$350.00
- Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity$565.00
- 20' of track Uncut 250 lb Capacity$250.00
- 25' of track Uncut 250 lb Capacity$565.00
- Orientation (looking UP the staircase)
- The stair lift will be on the left$0.00
- The stair lift will be on the right$0.00
- Installation
- NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.$0.00
- Self Installation$0.00
- Nationwide Installation (Not available in Oregon or Washington)$599.00
- Nationwide Measurement Service - Requires an Installation Selection (Not available in Oregon or Washington)$749.00
- Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington)$437.50
- Installation Permit
- License / Permit / Inspection$425.00
- Permit and Inspection$350.00
- Permit (Required in Kentucky for EACH item being installed)$87.50
- Permit & Inspection (Required in Georgia for EACH item being installed)$250.00
- Permit & Inspection (Required in Alabama. Additional units incur additional fee.)$300.00
- Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs$300.00
- Installation In Remote or Limited Access Location$285.00
- Existing Stair Lift Removal$499.00
- Additional Charge for Installation in the States of: New York, and Massachusetts$150.00
- Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.$0.00
- 1. Overall length$0.00
- 2. Top stair to bottom stair$0.00
- 3. Staircase width$0.00
- 4. Bottom clearance$0.00
- 5. Rise of one step$0.00
- 6. Tread of one step$0.00
- 7. Diagonal$0.00
- 8. Door at the top$0.00
- Need help measuring? Print out the "How to Measure" worksheet.$0.00
Each curved stair lift must be custom manufactured to suit the unique requirements of the site. The unit is manufactured to the exact dimensions of the site application as determined by the digital survey and no two applications are alike. Lifts go into factory production immediately upon submission of the order to the factory which is after customer signs off on the CAD drawing. Accordingly, AmeriGlide has a substantial investment in resources and labor and as such we have a 25% cancellation fee for any order cancelled after the measurement survey but prior to submission for production, 50% once the lift is in production. Once a custom stair lift order has been shipped it cannot be canceled or returned. The shipment cannot be refused. No refund will be made for orders of this status.
